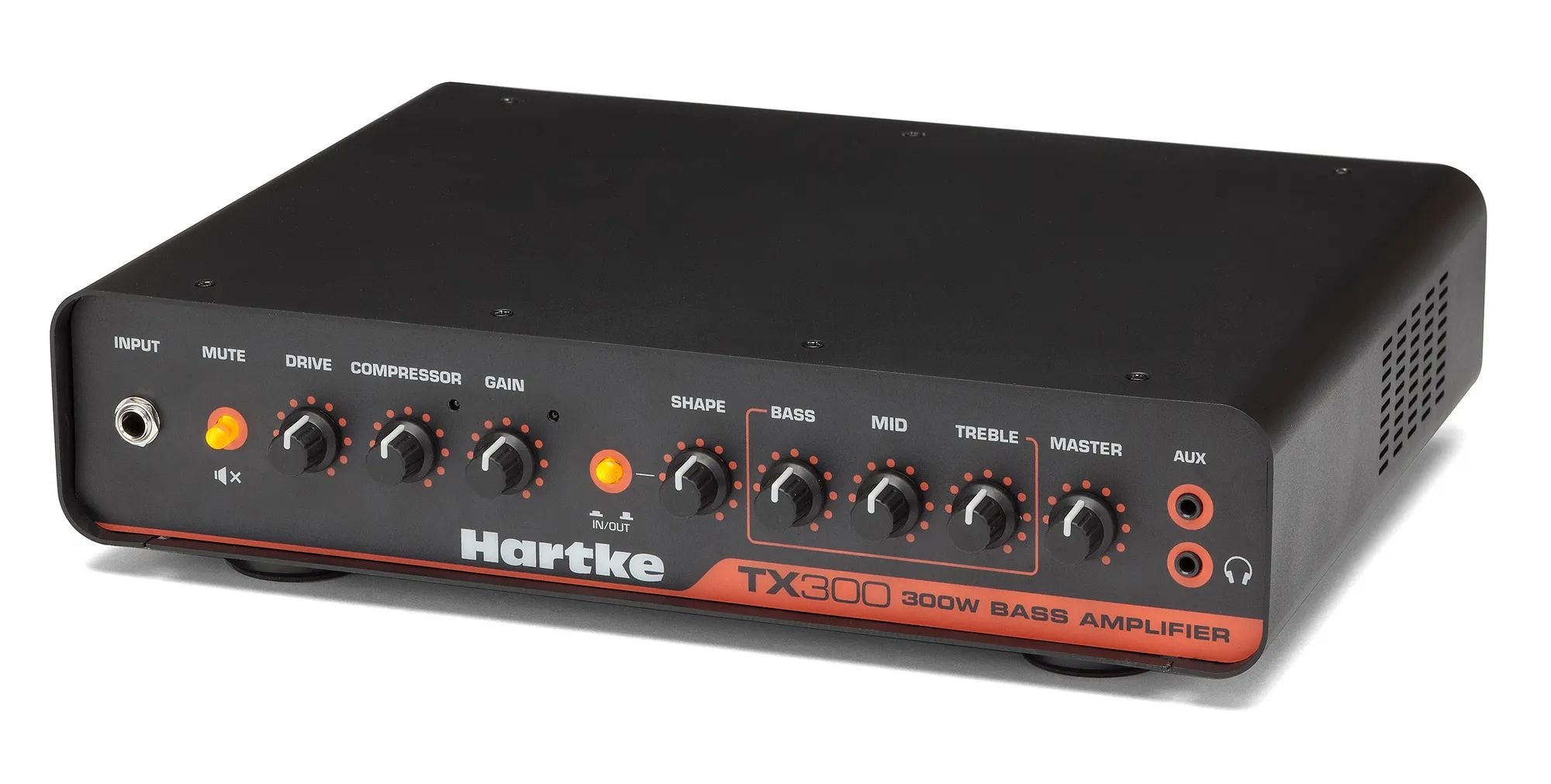

Hartke TX300 - 300-watt Lightweight Bass Amplifier

DESCRIPTION

The lightweight TX300 bass amplifier is the answer for bassists who need a compact amp that can handle the demands of any gig. With 300 watts of power packed into an aluminum chassis that weighs just five pounds, and a flexible preamp with Hartke's Shape circuit for dialing in any tone, the TX300 is a portable powerhouse.

FEATURES

• 300-watt Class D bass amplifier that weighs 5lb
• Drive circuit for added distortion effect
• Variable compressor for increased dynamic control
• 3-band EQ with Shape control
• 1/4" Instrument input
• 1/8" (3.5mm) Aux input
• 1/8" (3.5mm) Headphone output
• Balanced XLR direct output
• Output Mute switch
• Rugged anodized aluminum chassis

Preamptive

The TX300 preamp features an active 3-band EQ with Hartke's Shape circuitry for tremendous control over tone. The Drive control allows users to add subtle warmth to their tone or crank it up to full fuzz. The onboard compressor can be dialed up to even out note volume, add punch, and protect the speaker cabinet from the harshest finger-popping techniques.

In Shape

The Shape control is a contour filtering system designed to enhance the sound of bass instruments. When enabled, it allows the player to continuously sweep a filter through various frequencies to tailor the effect of the curve to the specific sonic characteristics of their instruments. This curve provides a moderate boost at certain frequencies and a deep cut at others.

Light & Versatile

Featuring an anodized aluminum chassis and weighing only five pounds, the TX300 is both rugged and ultra-portable. This Class D amplifier delivers the sonic characteristics of traditional amplifiers without the weight. A balanced XLR direct output allows direct connection to a mixer, ideal for direct recording or venue setups. And with a headphone output and 1/8" (3.5mm) input for playing along with your tracks, the TX300 is equally at home in the practice room, the studio, or on the road.

SPECIFICATIONS

• Rated Output Power: 300 watts @ 4 ohms, 200 watts @ 8 ohms
• Input: >1MΩ unbalanced
• Compressor Ratio: Fixed 1.6:1
• Compressor Threshold: Off to -30dBu to Input
• Mute: >80dB (100dB typical) at Direct Output & Speaker Output
• Bass Shelf Knob: +/-16dB @ 30Hz (+/-12dB @ 70Hz)
• Mid Peak Knob: +/-16dB @ 700Hz
• Treble Shelf Knob: +/-16dB @ 6.5kHz (+/-12dB @ 3kHz)
• Shape Range: 185Hz – 860Hz (-20dB @ Fo)
• Preamp Output: 100Ω unbalanced
• Power Amp In: 20kΩ balanced, 0dBu for Rated Output Power
• Direct Output: 125Ω balanced
• Stereo Aux Input: 3kΩ unbalanced, -10dBV
• Phones: 80mW max @ 32Ω
