DAS Audio EVENT-208A Bundle with Stacking Bracket and Dolly

DESCRIPTION

This bundle includes

• 4 - EVENT-208A  Amplified Line Array
• 1 - AXS-EVENT208 Speaker Stacking Bracket
• 3 - PROS3-MIC Cable
• 1 - PL-EVENT208S Metallic Platform for Transport

EVENT-208A

The EVENT-208A Line is a three-way powered line array in a double 8” configuration. The DAS loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The EVENT-208A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and DAS’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.

The 3-way self-amplified system comes with a very light Class D amplifie and  high-end DSP components with an Easy-DSP ™ configuration system. It contains high-quality Neutrik® connectors and high-quality birch enclosure with an ISO-flex high durability finish with a professional fast-flying system. It is manufactured from an injected HF guide of injected aluminum with an M-75 compression motor and D.A.S.

CHARACTERISTICS



Nominal Power Amplifier LF: 360 Wpeak

Nominal Power Amplifier MF: 360 Wpeak

Nominal Power Amplifier HF: 360 Wpeak

Frequency Response: 75 Hz - 20 kHz

Nominal Peak SPL at 1 m: 132 dB

Horizontal Coverage (-6 dB): 90º

Nominal Vertical Coverage: Depends Tilt Angle

Enclosure Material: Birch Plywood

Color / Finish: Black / ISO-flex Paint

Connectors: Input: Female XLR Loop Thru: Male XLR AC

Input: powerCON AC Output: powerCON

Nominal Voltage: 115 V, 2.6 A, 50 Hz / 60 Hz 230 V, 1.3 A, 50 Hz / 60 Hz

Dimensions (H x W x D): 27 x 67 x 36.6 cm 10.6 x 26.4 x 14.4 in

Weight: 30 kg (66 lb)

AXS-EVENT208

The AXS-EVENT208 is a stacking bracket for support of roof mounting or truss mounting (requires AXC-AT), the TRD-2 mount (requires AXC-ZT), for Event 208A; It is very useful for concerts and special events!

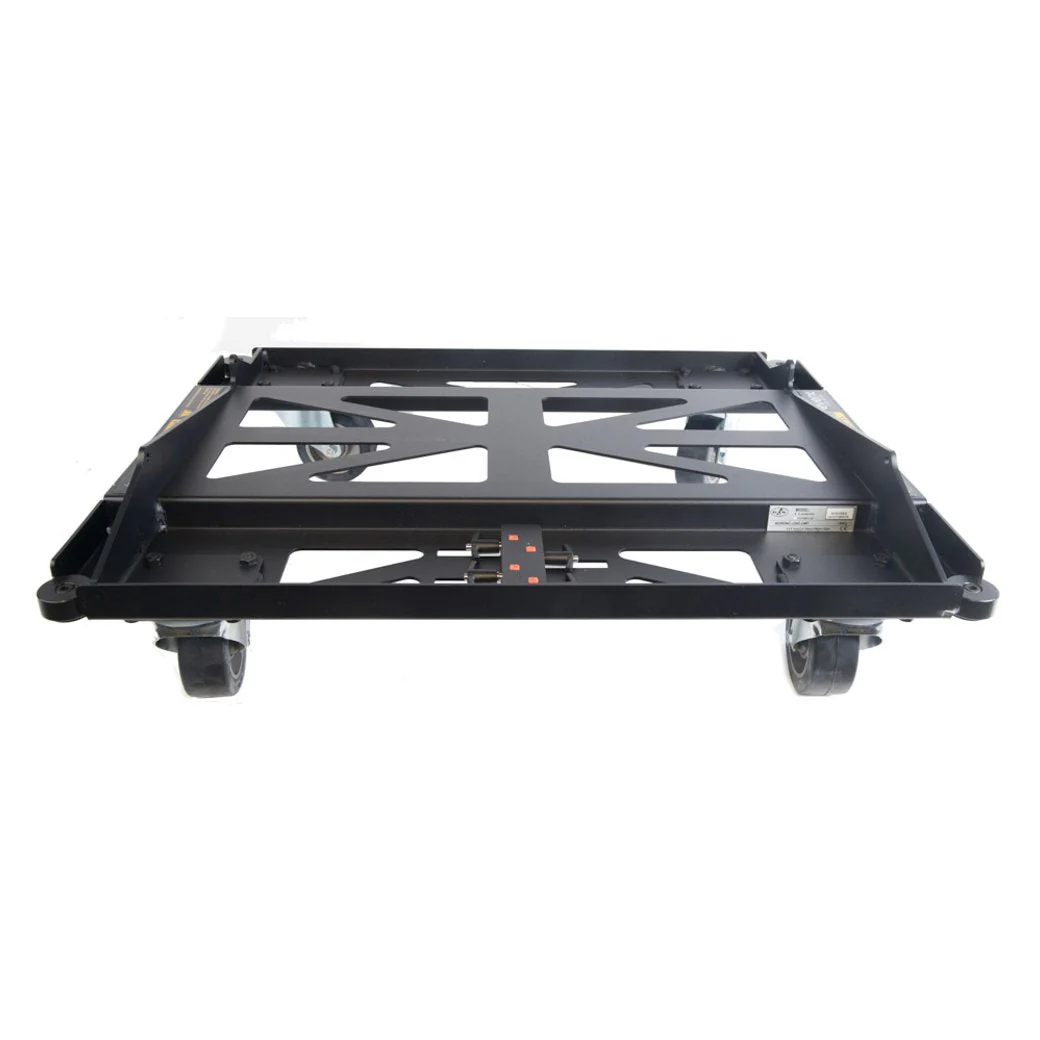

PL-EVENT208S

This platform is used to transport the Event-208A. It is very useful to move the speakers easily in concerts or other events.

It is very convenient when you are moving the speakers from one place to another. Up to 6 Event210A speakers can be mounted. This design, is made of black metal and 4 rotating wheels.

Made for:

• Event 208A



 PROS3

XLR Male to XLR Female
Velcro cable tie included.
BLACK.

SPECIFICATIONS

• Available in 3’ (0.91m)
• 6’ (1.8m), 10’ (3.04m),
• 25’ (7.62m), 30’ (9.14m)
• 50’ (15.24m)
• and 100’ (30.48m)
